Semi truck windshield replacement is the process of removing broken safety glass from a commercial rig and installing a new factory-standard windshield. Drivers replace these windshields when cracks extend over two inches or block the driver view. Getting fresh glass keeps big rigs safe, street legal, and protected against harsh road conditions.
A damaged glass panel compromises structural safety and risks costly Department of Transportation violations. Planning a timely Semi Truck Windshield Replacement protects your fleet from extra downtime and expensive road penalties. Experienced technicians handle this task to ensure proper seals, correct alignment, and full safety compliance on long hauls.
What Is Semi Truck Windshield Replacement?
A commercial vehicle windshield does more than block wind and rain. It provides structural strength to the cab during rollover accidents. It also supports air bags when they deploy. Replacing a rig windshield involves removing damaged safety glass, cleaning the metal frame, applying heavy polyurethane sealant, and inserting a fresh glass panel.
Commercial trucks use two main glass styles. Some trucks use a split two-piece glass setup. Other trucks use a single curved glass panel. Both styles require precision work so moisture and air do not leak into the truck cab.

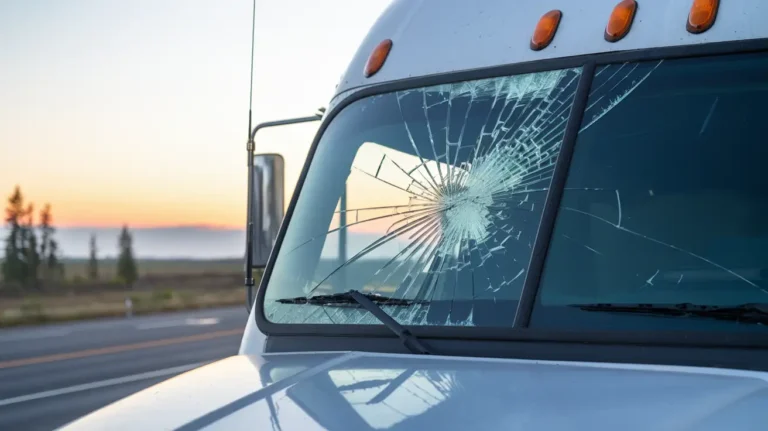

Common Types of Semi Truck Windshield Damage
Road debris creates different kinds of glass harm. Knowing the type of damage helps you decide if a quick repair or full replacement is needed.
Bullseye Chips: Circular impact marks caused by flying rocks hitting the glass at high speeds.
Star Breaks: Small cracks radiating outward from a central impact spot.
Stress Cracks: Long cracks that form without an impact point, often triggered by rapid temperature swings.
Edge Cracks: Fractures that start within two inches of the outer frame. These quickly spread across the glass.
Combination Cracks: Complex damage mixing chips and long crack lines that weaken the entire glass unit.
What Causes Windshield Damage in Semi Trucks?
Big rigs spend thousands of hours on highways every year. Their size and heavy mileage expose them to unique road hazards.
Highway Debris: Gravel, loose asphalt, and road trash kicked up by surrounding traffic.
Extreme Weather: High winds, heavy hail, and drastic temperature shifts between summer heat and winter ice.
Cab Flexing: Torsional stress from heavy loads and rough roads twisting the truck frame.
Imperfect Installation: Old adhesive or improperly aligned glass that puts pressure on the edges.
Vibration: Constant engine rumbling and rough pavement expanding tiny chips into large cracks over time.
Why Driving With a Damaged Semi Truck Windshield Is Dangerous
Driving a commercial rig with damaged glass creates serious hazards for the driver and other motorists on the highway.
Loss of Structural Strength
The windshield supports up to 45% of the cab roof strength in a rollover event. Cracked glass cannot support that heavy weight.
Reduced Visibility
Cracks reflect sunlight and headlights into the driver’s eyes. Glare blinds drivers during crucial moments on busy highways.
Compromised Airbag Safety
Pass-side airbags bounce off the inner glass surface when deploying. Weak glass can pop out, causing the airbag to fail.
You may read about windshield chip repair.
Federal Regulations for Commercial Truck Windshields
The Federal Motor Carrier Safety Administration enforces strict rules regarding commercial vehicle glass condition. Inspectors look at glass clarity during routine roadside checks.
Sweep Zone Limits: No cracks or chips are allowed in the area swept by the windshield wipers.
Size Restrictions: Damage outside the wiper sweep area cannot exceed 3/4 inch in diameter.
Proximity Rule: Two separate damaged spots cannot sit within four inches of each other.
Out-of-Service Penalty: Violations can place a truck out of service immediately, leading to missed delivery deadines and heavy fines.
Semi Truck Windshield Repair vs Replacement
Not every glass chip requires a full glass swap. Knowing the difference saves money and keeps your fleet rolling smoothly.
Small chips under one inch and away from the edges are candidates for simple repair. Technicians inject clear resin into the glass cavity to restore clarity and seal the spot.
However, a full windshield replacement for semi truck models becomes necessary when cracks stretch long or penetrate inner glass layers. A full swap is also required if damage enters the driver direct line of sight.
When Should You Replace a Semi Truck Windshield?
Deciding when to schedule a semi windshield replacement depends on clear safety signs:
- Cracks exceed two inches in length anywhere on the glass surface.
- Damage enters the main wiper path on the driver side.
- Deep pits penetrate both the outer glass layer and the inner plastic layer.
- Water or air leaks past the rubber gasket or urethane seal.
- Pitting and small chips cover the glass surface, creating blinding glare during night driving.

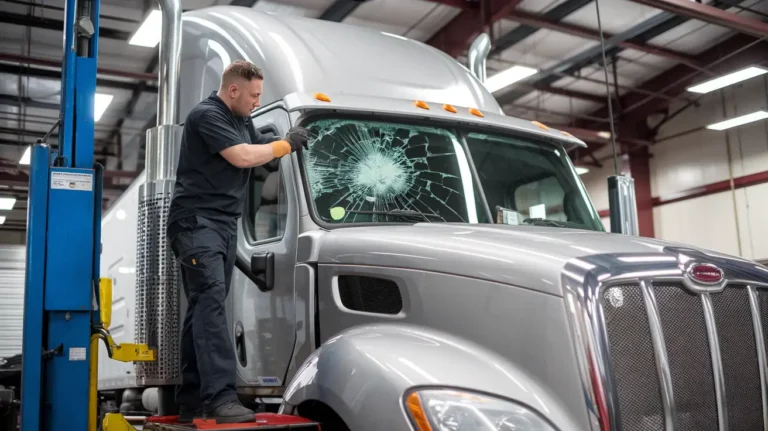

How Semi Truck Windshield Replacement Works
Replacing commercial truck glass requires clear technical steps. Expert auto glass technicians follow a strict protocol for each job:
Inspection and Setup: Technicians examine the frame structure and protect the cab interior from broken glass fragments.
Trim and Sensor Removal: They remove wiper arms, exterior trim, and mounted sensors or camera equipment carefully.
Old Glass Extraction: Specialists cut the old urethane seal using cold knives or wire cutting tools to lift out broken glass.
Pinchweld Preparation: They scrape away old sealant, inspect the metal frame for rust, and apply anti-corrosion primer.
Urethane Application: A precise bead of high-grade commercial polyurethane adhesive goes onto the frame perimeter.
New Glass Setting: Technicians set the fresh glass panel in place using suction cups to align edges perfectly.
Curing and Reassembly: The adhesive cures while technicians reinstall wipers, trim panels, and sensor hardware safely.
Single-Piece vs Two-Piece Semi Windshields
Different semi truck models feature distinct windshield designs that impact service times and budget considerations.
Single-Piece Curved Windshields
Modern aerodynamic trucks often feature a single continuous glass panel. This style offers wide driver visibility and sleek styling. However, single-piece panels cost more to manufacture and take longer to replace due to their large size and weight.
Two-Piece Split Windshields
Classic truck models use two flat glass panels separated by a center divider strip. If a rock damages the passenger side, you only replace that single flat panel. This lowers overall material costs and shortens repair times significantly.
Semi Truck Windshield Replacement Cost
Understanding the semi truck windshield replacement cost helps fleet managers plan maintenance budgets accurately. Overall prices depend on truck make, model, glass type, and advanced driver assistance systems.
Factor | Estimated Cost Range | Details |
Two-Piece Flat Glass | $250 – $450 per side | Common on older Freightliner or Kenworth models |
Single-Piece Curved Glass | $500 – $1,200 | Found on modern aerodynamic highway tractors |
Custom / Specialty Glass | $1,000 – $1,800+ | Rare or specialized heavy haul commercial cabs |
ADAS Sensor Recalibration | $250 – $500 | Required for lane departure and braking cameras |
Labor charges typically range from $150 to $300 based on shop location and mobile service availability. Choosing quality glass prevents premature seal failure and expensive air leaks down the road.
How Long Does Semi Truck Windshield Replacement Take?
Physical installation usually takes between one and two hours. However, the overall service time depends on cure times for heavy polyurethane sealants.
The vehicle must sit parked until the adhesive reaches Safe Drive-Away Time. This curing process takes anywhere from one to four hours depending on ambient temperature and air humidity. Driving too soon allows the glass to shift, breaking the airtight seal and creating dangerous air leaks.
Does Insurance Cover Semi Truck Windshield Replacement?
Most commercial auto insurance policies cover glass service under comprehensive coverage options.
Comprehensive Coverage: Covers damage from flying rocks, hail, falling branches, and vandalism.
Deductible Options: Many commercial policies include full glass options with zero deductible to encourage quick safety fixes.
Fleet Policies: Fleet owners often bundle glass repairs to maintain consistent safety records and lower premium rates.
Direct Billing: Top auto glass shops bill insurance providers directly to reduce administrative paperwork for truck drivers.
How to Prevent Future Windshield Damage
While road hazards happen, practical habits help extend the life of fresh commercial glass:
- Maintain safe follow distances behind gravel haulers and dump trucks.
- Replace worn wiper blades every six months to prevent glass scratching.
- Avoid spraying hot water on frozen glass during icy winter mornings.
- Fix tiny chips immediately before temperature swings turn them into long cracks.
- Park rigs indoors or under shelters during severe weather warnings.
Why Choose Professional Semi Truck Windshield Replacement?
Installing heavy commercial glass requires training, special tools, and heavy-duty adhesives. Professional technicians bring crucial benefits to every service job:
Certified Installation: Proper handling prevents seal leaks, cab rust, and structural wind noise.
Proper Calibration: Accurate adjustment for windshield-mounted safety cameras and lane departure sensors.
Mobile Glass Units: Certified crews travel directly to truck stops, fleet yards, or roadside breakdown locations.
Warranty Protection: Professional shops back their installation work with warranties against leaks and defect issues.
Selecting certified specialists guarantees your truck windshield replacement meets strict safety standards and federal highway requirements.
Final Thoughts
A clear, crack-free windshield is essential for highway safety, driver comfort, and DOT compliance. Addressing minor chips before they expand prevents costly downtime and keeps your commercial trucks earning revenue on the road.
If your fleet operates in Central Texas, reach out to Texas Reliable Auto Glass for fast service. Our certified technicians provide expert Windshield Replacement in Austin to restore your commercial rigs quickly and safely.
FAQs
Can you drive a semi truck with a cracked windshield?
You can drive short distances only if the crack stays outside the wiper sweep area and measures under 3/4 inch. Larger cracks violate federal safety regulations and risk out-of-service orders during roadside inspections.
How long must a semi sit after a windshield replacement?
A commercial rig must sit parked for at least one to two hours after installation. This allows the urethane adhesive to dry completely and achieve a safe bond.
How much does a semi windshield replacement cost on average?
Average costs range from $300 for a single flat panel on a two-piece glass setup up to $1,500 for large curved glass panels with sensor recalibration included.
What is the difference between OEM and aftermarket semi glass?
OEM glass comes from the original truck maker and matches original factory specs exactly. Aftermarket glass meets safety guidelines at a lower price point but may vary slightly in optical clarity.
